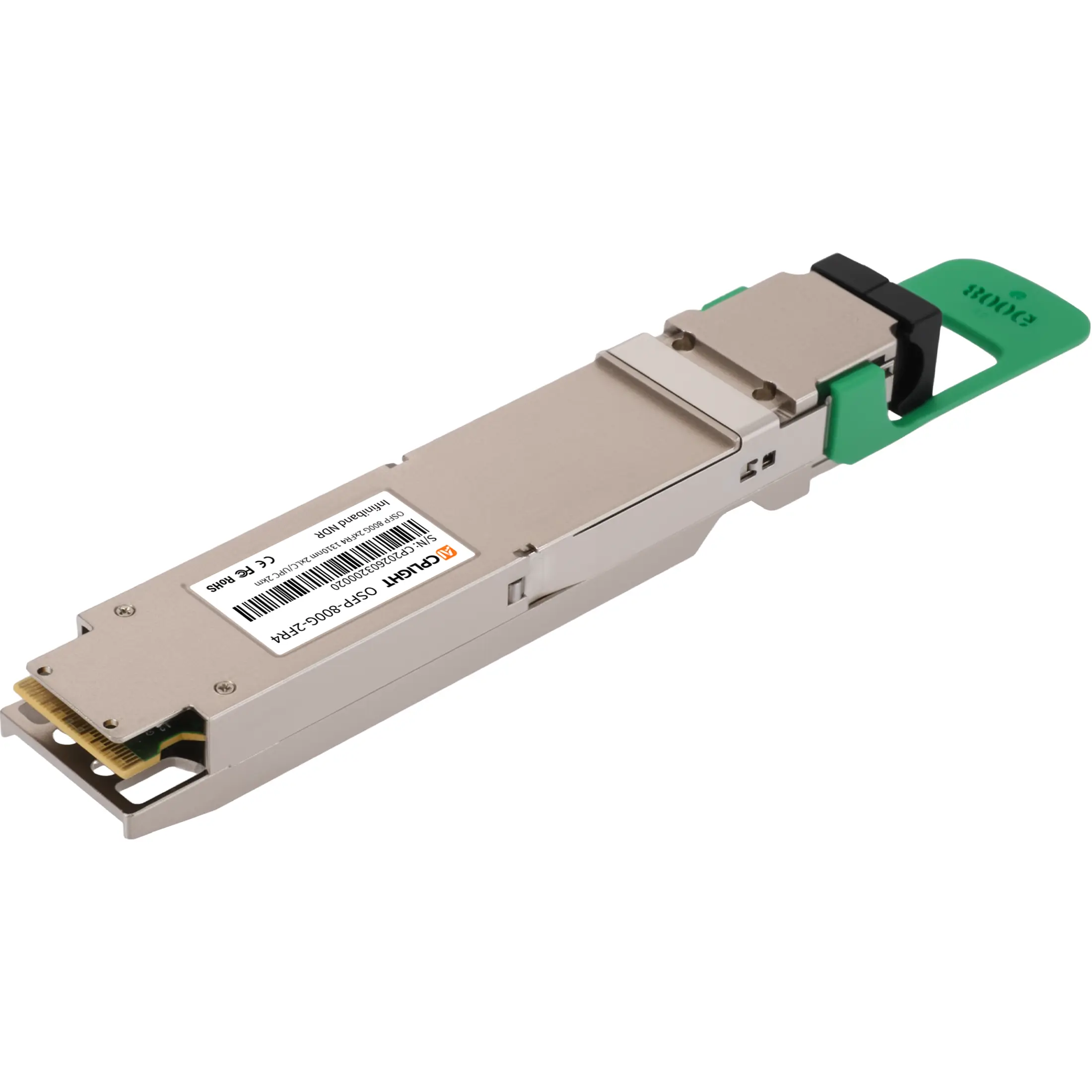

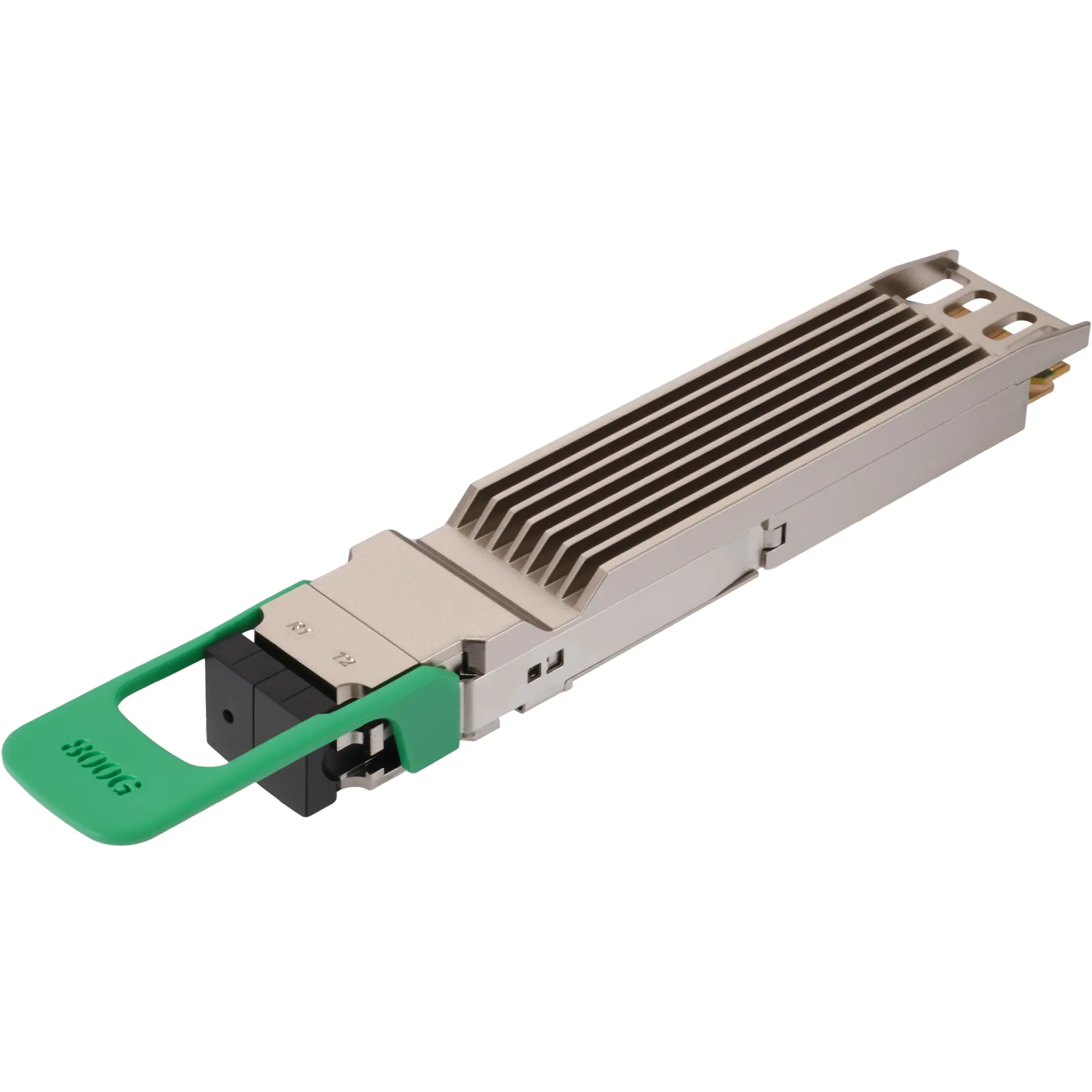

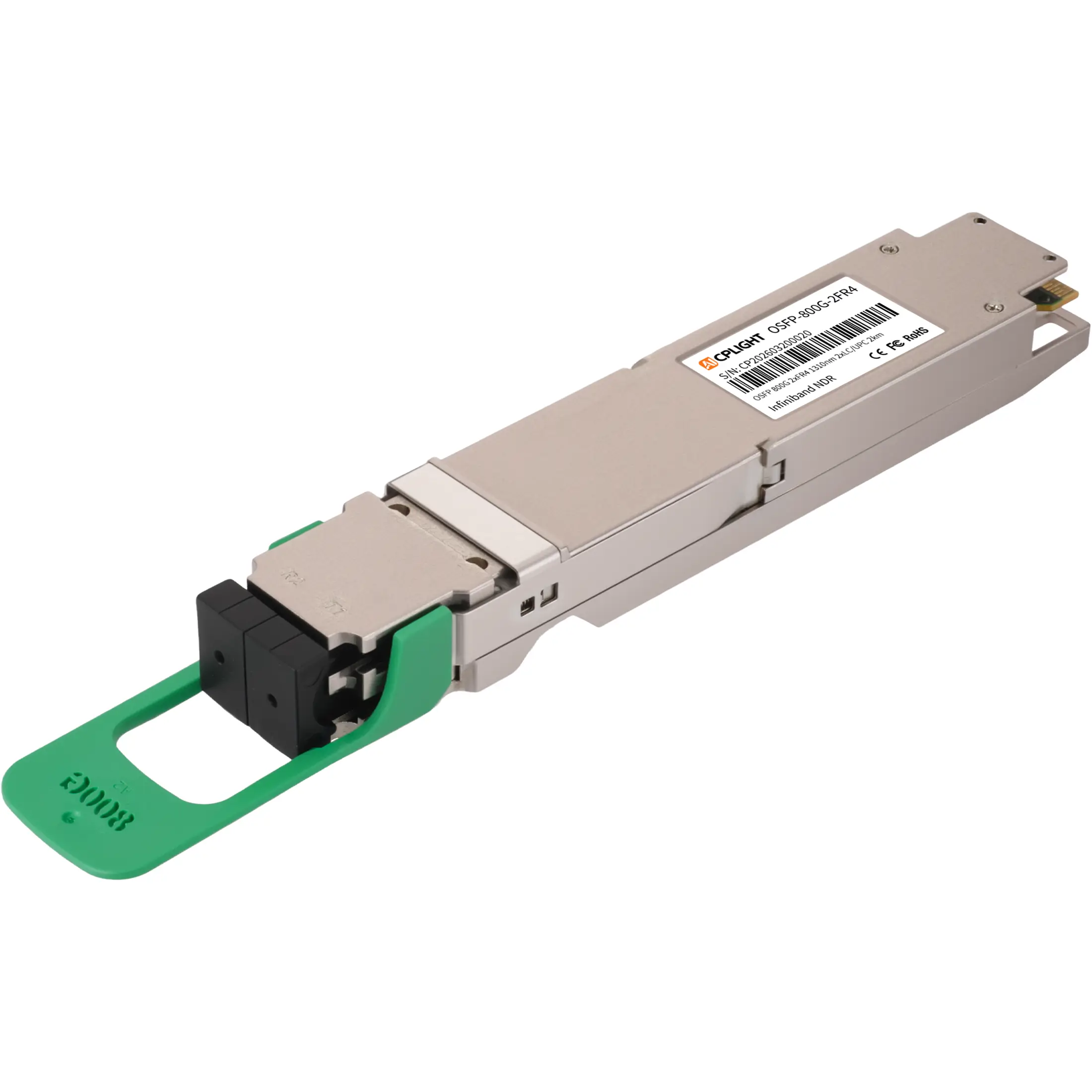

800GBASE 2xFR4/FR8 OSFP Finned Top PAM4 1310nm 2km DOM Dual Duplex LC/UPC SMF Optical Transceiver Module
800GBASE 2xFR4/FR8 OSFP Finned Top PAM4 1310nm 2km DOM Dual Duplex LC/UPC SMF Optical Transceiver Module - Image 2
800GBASE 2xFR4/FR8 OSFP Finned Top PAM4 1310nm 2km DOM Dual Duplex LC/UPC SMF Optical Transceiver Module - Image 3

800GBASE 2xFR4/FR8 OSFP Finned Top PAM4 1310nm 2km DOM Dual Duplex LC/UPC SMF Optical Transceiver Module

P/N: OSFP-800G-2FR4 SKU: 205700

US$1,199.00

In Stock: 92 pcs

Transceiver Models:

Compatible Brands: Arista Cisco Huawei Juniper NVIDIA
Length: 0.2m (0.65ft) 0.3m (0.98ft) 0.5m (1.6ft) 2m (7ft) 2.5m (8.2ft) 3m (10ft) 4m (13ft) 5m (16ft) 10m (33ft)
Quantity:
  • 30-day return and refund
  • 3-year warranty
  • available for delivery within 2 days service icon Available for delivery within 2 days
  • free shipping for qualifying orders service icon Free shipping for orders over

Products Highlight

  • 850Gbps High-Speed Transmission
  • Up to 2km over SMF
  • Broadcom 7nm DSP for Stable Performance
  • Compliant with IBTA BER Standard
  • 2×CWDM4 MUX/DEMUX Design
  • Power Dissipation Below 16W

Specifications

Form Factor OSFP(Finned Top) Data Rate 850Gbps
Media SMF Wavelength 1310nm
Connector Dual Duplex LC UPC Distance 2km
Transmitter Type EML Receiver Type PIN
Electrical Modulation 8x 106.25 PAM4 Optical Modulation Dual 4x 106.25 PAM4
Power Consumption ≤16.5W Case Operating Temperature 0 to 70°C (32 to 158°F)
Protocol 800 Gigabit Ethernet 800G RoCE 2x 400G Infiniband NDR Application Switch to Switch Other Optical Links

Applications

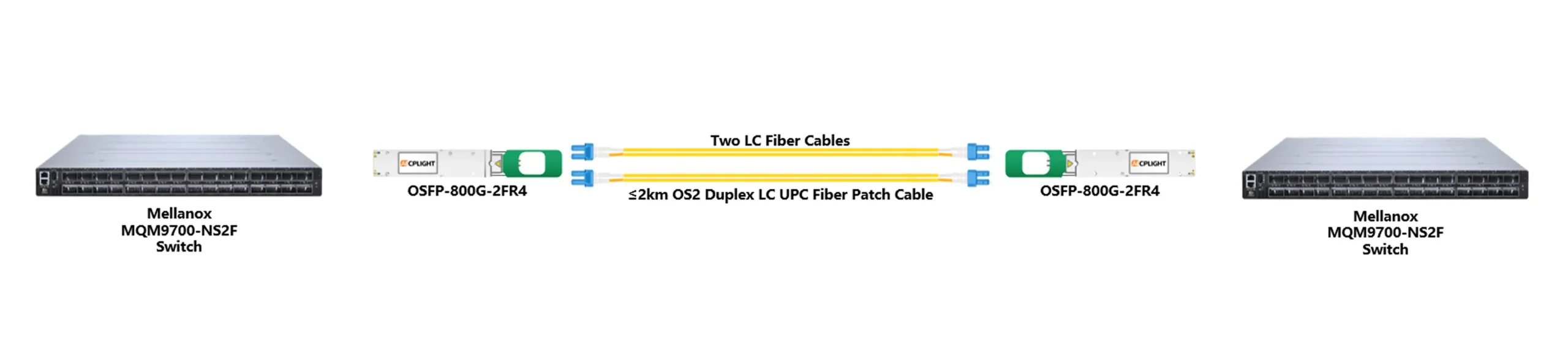

Scenario 1: 800G Switch-to-Switch Direct Connection

Two OSFP-800G-2FR4 transceivers are installed on both 800G OSFP switches and connected through two duplex LC UPC OS2 single-mode fiber cables, enabling direct 800G connectivity. It supports transmission up to 2km over OS2, making it suitable for Spine-Spine and Spine-Core high-speed interconnects in AI data centers.

Related Products

Certification

Features

Switch Series & Supported Models

Browse common switch series and models supported for each brand.

SeriesCompatible Switch Models (Examples)
250 SeriesSG250X
350 SeriesSG350XSG350XGSX350X
550 SeriesSF550XSG550XSG550XGSX550X
8000 Series820182028800-LC-36FH8800-LC-48H8201-32FH88-LC0-36FH-M88-LC0-36FH8101-32FH8101-32H8102-64H88-LC0-34H14FH8202-32FH-M8201-24H8FH86-MPA-14H2FH-M86-MPA-4FH-M86-MPA-24Z-M8212-48FH-M8711-32FH-M88-LC1-52Y8H-EM8711-48Z-M84-MPA-2H12Z-M8K-MPA-16Z2D8K-MPA-18Z1D
8010 Series8011-4G24Y4H-I8011-12G12X4Y-A8011-12G12X4Y-D8011-32Y8L2H2FH

Compare Items

800GBASE 2xFR4/FR8 OSFP Finned Top PAM4 1310nm 2km DOM Dual Duplex LC/UPC SMF Optical Transceiver Module800GBASE 2xFR4/FR8 OSFP Finned Top PAM4 1310nm 2km DOM Dual Duplex LC/UPC SMF Optical Transceiver Module800GBASE 2xDR4/DR8 OSFP Finned Top PAM4 1310nm 500m DOM Dual MPO-12/APC SMF Optical Transceiver Module800GBASE 2xDR4/DR8 OSFP Finned Top PAM4 1310nm 500m DOM Dual MPO-12/APC SMF Optical Transceiver Module800GBASE 2xSR4/SR8 OSFP Finned Top PAM4 850nm 50m DOM Dual MPO-12/APC MMF Optical Transceiver Module800GBASE 2xSR4/SR8 OSFP Finned Top PAM4 850nm 50m DOM Dual MPO-12/APC MMF Optical Transceiver Module
Form FactorOSFP(Finned Top)OSFP(Finned Top)OSFP(Finned Top)
Data Rate850Gbps850Gbps850Gbps
MediaSMFSMFMMF
Wavelength1310nm1310nm850nm
ConnectorDual Duplex LC UPCDual MTP/MPO-12 APCDual MTP/MPO-12 APC
Power Consumption≤16.5W≤16.5W≤16.0W
Protocol800 Gigabit Ethernet
800G RoCE
2x 400G Infiniband NDR		800 Gigabit Ethernet
800G RoCE
2x 400G Infiniband NDR
4x 200G Infiniband NDR200		800 Gigabit Ethernet
800G RoCE
2x 400G Infiniband NDR
4x 200G Infiniband NDR200

Resources

Datasheet-OSFP-800G-2FR4

FAQ

Ask a Question

Find answers to common questions about our products.

Can this module be used on NVIDIA DGX platforms?

No. This module adopts a Finned Top structure and is mainly used for air-cooled switch ports, while NVIDIA DGX platforms usually require Flat Top OSFP modules.

Is this module compatible with NVIDIA QM9790 switches?

Yes. This series of products is compatible with NVIDIA Quantum-2 platform devices, such as QM9700 / QM9790 switches. Before shipment, AICPLIGHT will test the products in our compatibility lab and can provide corresponding test reports or compatibility verification documents according to project requirements.

Why does OSFP-800G-2FR4 use a duplex LC interface instead of an MPO interface?

OSFP-800G-2FR4 adopts CWDM MUX/DEMUX technology, which can multiplex optical signals of multiple different wavelengths into one pair of fibers for transmission. Therefore, it does not need to use a parallel MPO interface and instead adopts a duplex LC interface.

What application scenarios is OSFP-800G-2FR4 suitable for?

OSFP-800G-2FR4 is suitable for long-distance high-speed interconnects in AI data centers, such as Spine-Spine, Spine-Core, and core switch interconnect scenarios. Compared with MPO parallel solutions, the duplex LC solution can reduce the number of fiber cores required.

Have a question? Our technical support team is here to help you find the right solution.
Contact Us

Questions & Answers

Ask a question
s***a Confirmed Purchase
3.5

We chose 2FR4 because the site required a longer reach than SR and DR, and the duplex LC connection also fit our existing cabling better. After installation, the module was recognized normally, and the link status remained stable.

l***a Confirmed Purchase
5.0

This module uses fewer fiber cores than an MPO solution, which makes it more convenient for upgrading our existing data center cabling. We did not encounter any obvious compatibility issues during testing.

d***i Confirmed Purchase
3.1

We used it for high-speed switch-to-switch connections, and it has been running continuously for a period of time. Both the temperature and link status have remained within the normal range.

k***i Confirmed Purchase
2.6

We were initially concerned that an 800G 2km module might have high power consumption, but the actual test results were acceptable. We will evaluate further purchases based on the quantity required for the formal project.

n***u Confirmed Purchase
5.0

The products arrived faster than expected, and the accompanying information was complete. This made our incoming inspection and test record process easier, which is helpful for project delivery.
